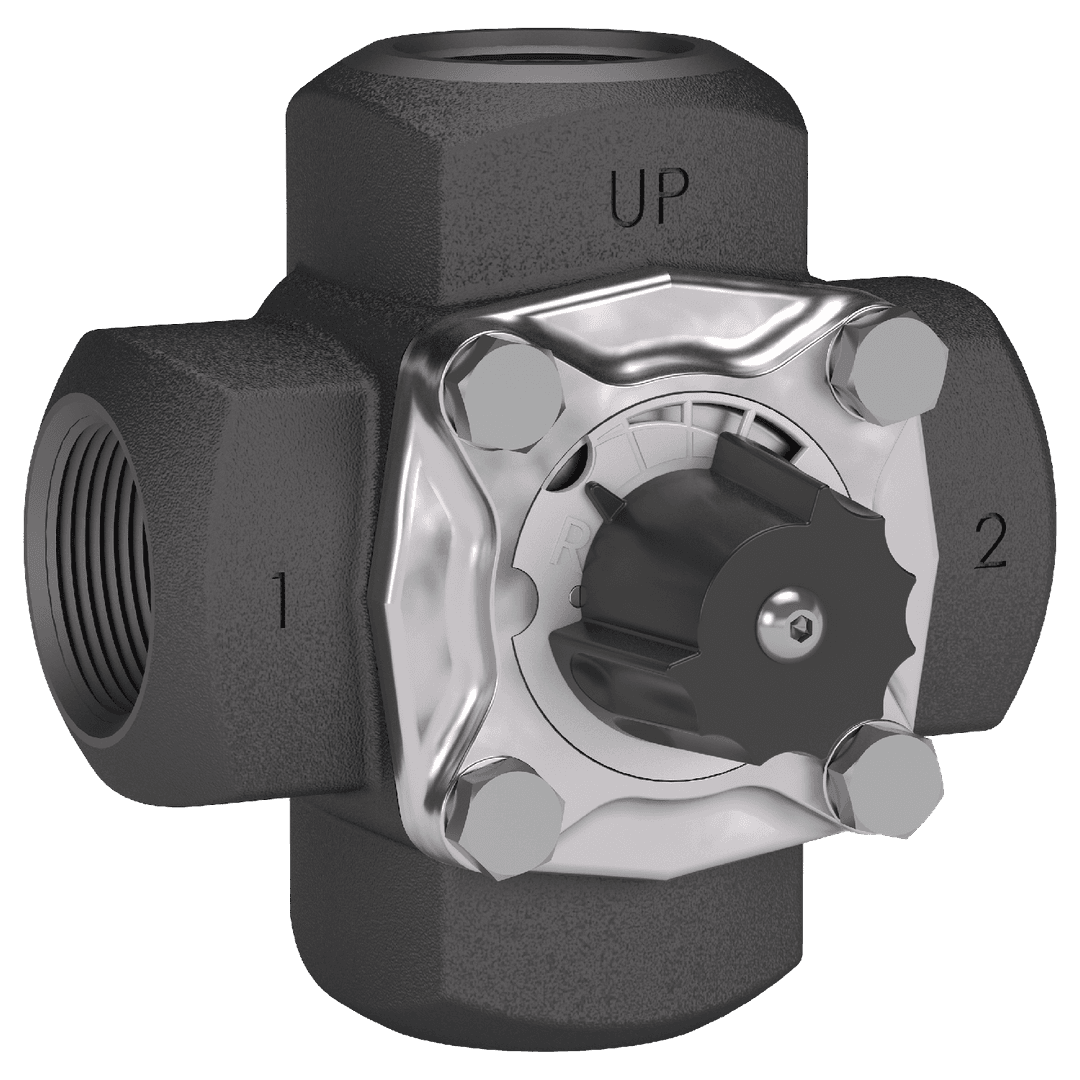

Characteristics
Function:
Used as a 4-way mixing valve in heating systems
Turning direction:
Changeable without tools - also under pressure
Connections:
Female thread DN 20, 25, 32 and 40
Motorisation:
Standard four-point attachment
Suitable actuators:
For example Belimo, Ouman, Seltron, Evenes, Automix, Vexve, ESBE
Maintenance:
Maintenance-free - O-rings, stem, cover, and closure replaceable
Properties
| Body: | Cast iron |
| Sleeve & shaft: | Brass |
| Cover: | Aluminium |
| Handle: | POM |
| O-rings: | EPDM |
| Medium: | water, glycol |
| Maximum working pressure: | 10 bar |
| Operating temperature: | 0 °C – +110 °C |
| Torque: | < 1 Nm |
| Turning angle: | 90-degrees |
Female thread

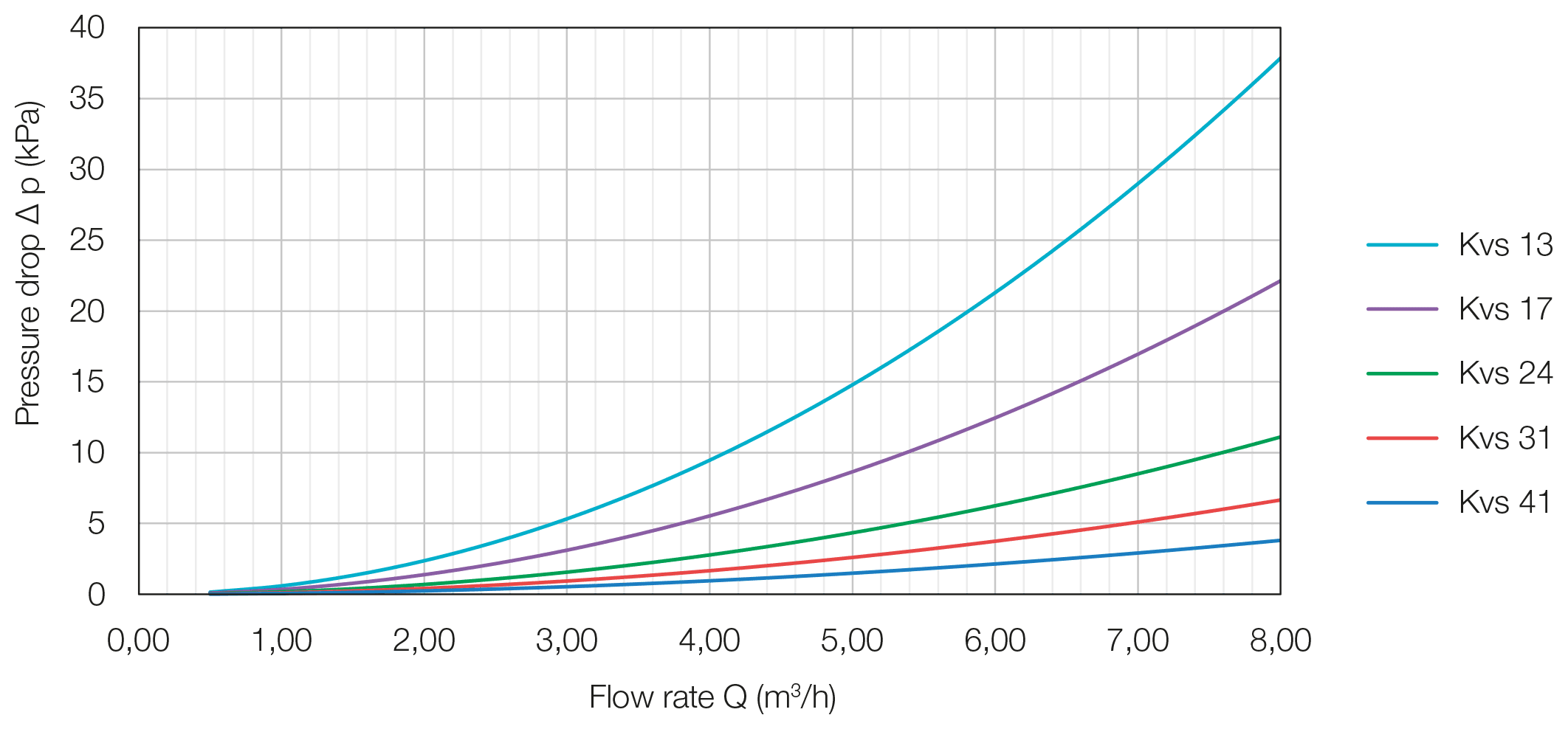

| Item | Product no | HPAC code | RSK code | EAN | Kvs | A | B mm | C mm | D mm | E mm | kg | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Termomix C 20 | 1670000 | 4023082 | 4905080 | 641873 312420 9 | 13 | 20 - Rp ¾” | 110 | 32 | 67 | 110 | 1,8 | ||
| Termomix C 25 | 1670001 | 4023083 | 4905081 | 641873 312425 4 | 17 | 25 - Rp 1” | 112 | 32 | 67 | 112 | 1,9 | ||
| Termomix C 32 | 1670002 | 4023084 | 4905082 | 641873 312432 2 | 24 | 32 - Rp 1 ¼” | 127 | 36 | 70 | 127 | 2,6 | ||
| Termomix C 40 | 1670003 | 4023085 | 4905083 | 641873 312440 7 | 31 | 40 - Rp 1 ½” | 127 | 40 | 73 | 127 | 3,1 | ||
| Termomix C 50 | 1670004 | 4023086 | 4905084 | 641873 312450 6 | 41 | 50 - Rp 2” | 135 | 48 | 80 | 135 | 4,6 |
