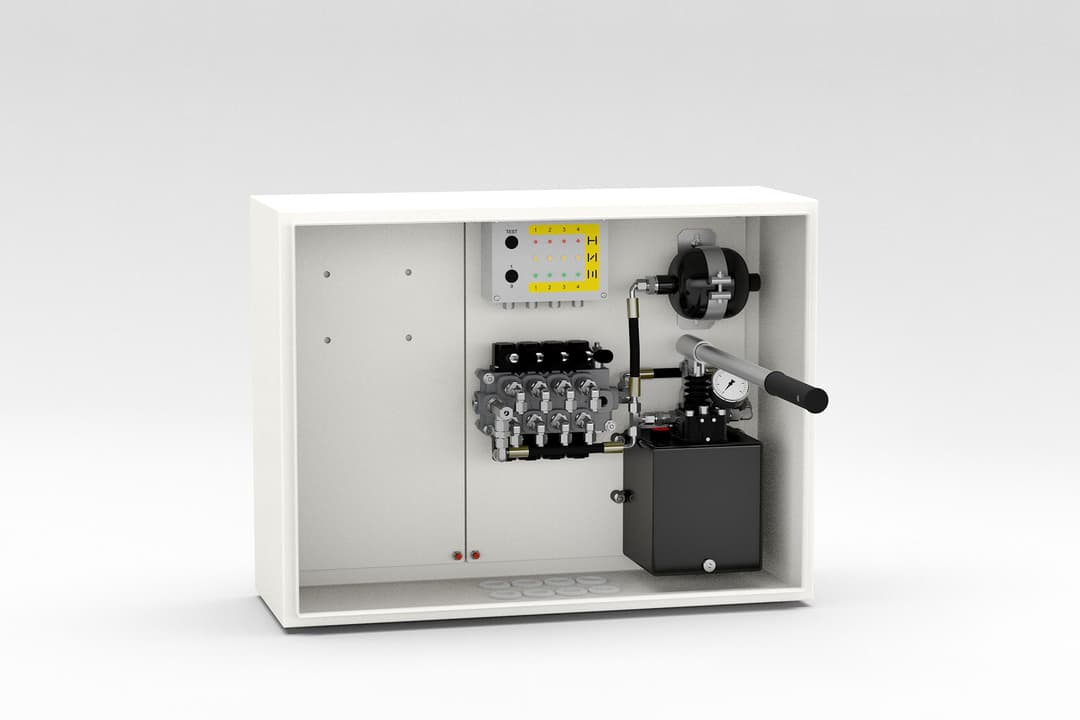

The HCU Manual is the basic version of a full range of control possibilities for Vexve hydraulic actuators. It is the right choice where simplicity is key and secure operation is needed at all times.

Model: Manual
Product no.: 810000

Technical charasteristics

Control cabinet for 4 valves

• Dimensions 800 x 600 x 300 mm (W x H x D)
• Protection cIass IP65

Hand pump

• Double acting hand pump with pilot check valves
• Fluid viscosity: 10−500 mm2 /s
• Filtration: ISO code 16/13; SAE class 4 or better
• Fluid temperature: −20 °C − +80 °C
• Ambient temperature: −20 °C − +50 °C
• Max. pressure: 380 bar
• Pressure limiter: 200 bar (adjustable)

Oil tank

• Reservoir capacity: 5 l

Control valve block

• Control valves: 4 / 6 pcs.
• Max. pressure: 350 bar
• Positions of lever: 3 (Valve open – Neutral – Valve shut)
• It's possible to maneuver one valve at a time.

Pressure gauge

• Range: 0…315 bar

Indicator lamp panel

• Indicated open and shut positions of valves
• Low voltage powered
• Connected to position transmitter on actuator

Connection for portable pump unit

• Quick couplings with flat face casing
• Pump unit (sold separately) incl. transportation box, hydraulic hoses and electric cable
