Hydrox™ by-pass

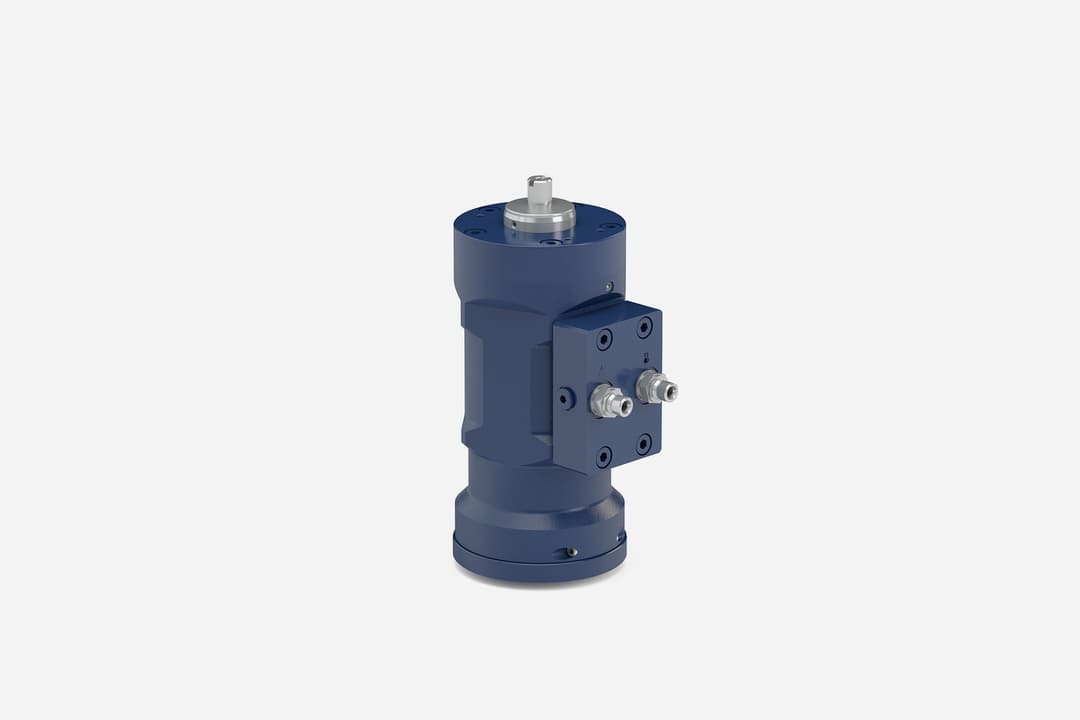

Hydrox by-pass is the smallest of the Hydrox actuator family. It is intended primarily for use on the bypass valve in demanding sites where mainline valves are equipped with larger Hydrox actuators. Hydrox by-pass provides the same capabilities as the larger Hydrox actuators and is designed to be used in the most challenging applications and environments.

Hydrox by-pass is the smallest of the Hydrox actuator family. It is intended primarily for use on the bypass valve in demanding sites where mainline valves are equipped with larger Hydrox actuators. Hydrox by-pass provides the same capabilities as the larger Hydrox actuators and is designed to be used in the most challenging applications and environments. Hydrox by-pass is intended specifically for district heating and cooling applications and operates seamlessly with Vexve DN50-DN100 ball valves.

Materials

Body:EN-GJS-400-15
Flange:EN S355
Indicator shaft:AISI 316L
Output shaft:42CrMo4
Seals:NBR
RecommendNeste Hydrauli 46 SUPER
hydraulic fluid:Neste Biohydrauli SE 46 or equal

Properties

Torques:Up to 350 Nm
Recommend pressure range:30−200 bar
Ambient temperature range:-25 ºC − +80 ºC
Rotating angle:91º
IP protection class:IP68
Corrosion resistance class:C3-L

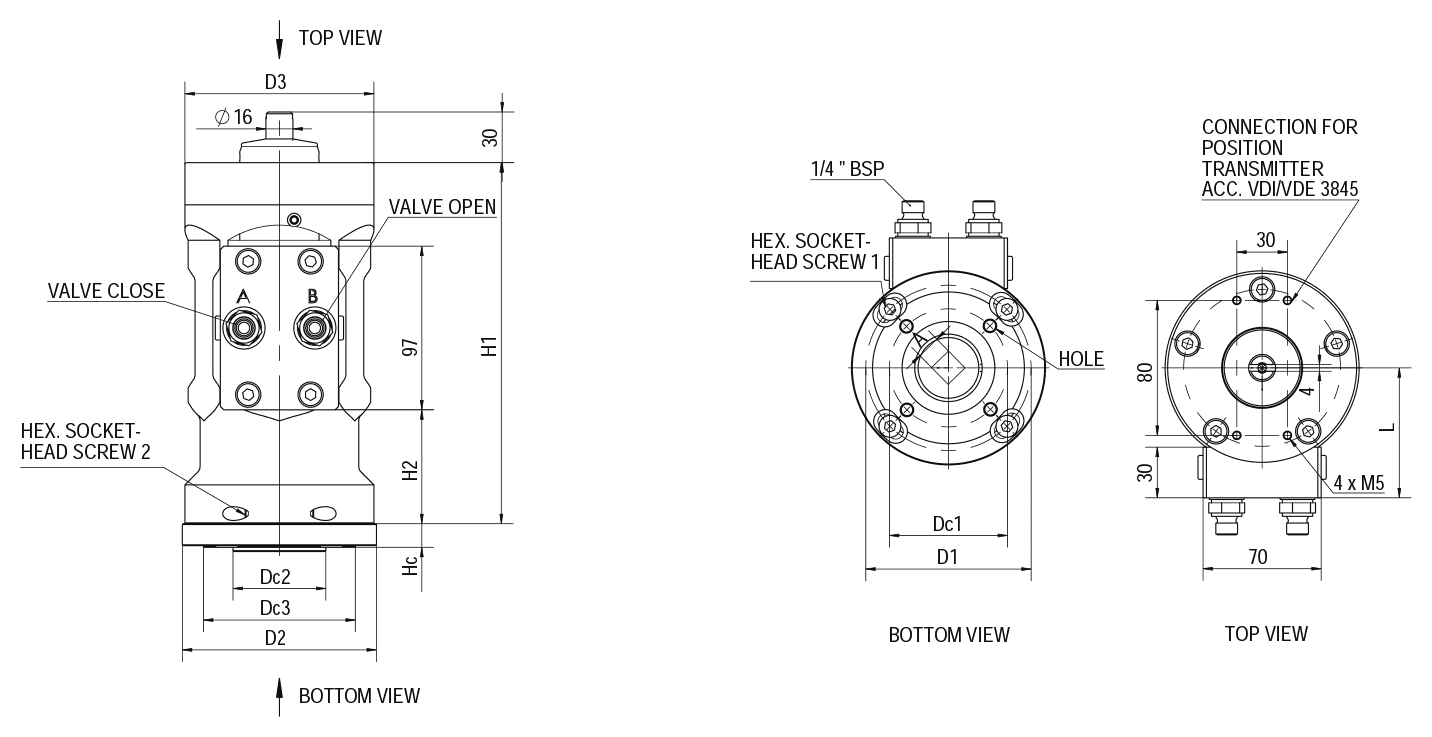

ModelD1D2D3H1H2LOil displacement [l]Hex socket-head screw 1Hex socket-head screw 2Dry weight [kg]
Hydrox 035BP9811511221468730,0974 x M82 x M814

Compatible valves

ModelProduct no.Ball valves, reduced boreBall valves, full boreA-squareISO 5211HoleDc1Dc2Dc3HcStem height
Hydrox 035BP80203507011DN 40, DN 50DN 32, DN 4011F074 x M87055901412,5
 80203507014DN 65, DN 80DN 50, DN 6514F074 x M87055901412,5
 80203507016DN 100DN 8016F074 x M87055901412,5
